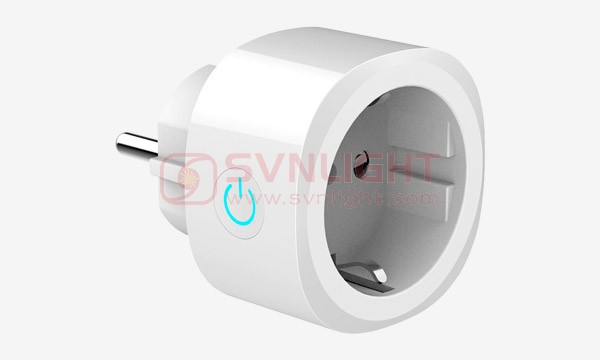

Smart Plug EU TYPE

1) AC output switch on/off by manual or Z-Wave command;
2) RGB LED indicates the Z-WAVE network range and load power;
3) Support SO and S2 security network;
4) Supporting power meter;
5) Supporting repeater role;
6) Supporting firmware OTA;
7) Supporting Smart Start;
8) Supports over-current protection.

Smart Plug is a Z-Wave Switch plug in module specifically used to
enable Z-Wave command and control (on/off) of any plug-in tool. It
can report wattage consumption or kWh energy usage.
This device is a security enabled Z-Wave Plus product that is able to
use encrypted Z-Wave Plus messages to communicate to other
security enabled Z-Wave Plus products.
Smart Plug is also a security Z-Wave device and supports the Over
The Air (OTA) feature for the product's firmware upgrade.
This device must be used in conjunction with a Security Enabled Z-
Wave Controller in order to fully utilize all implemented functions.

Power supply:AC 230V+10%，50Hz
Power loss:≤1W
Nominal input voltage:230V
Rated current:10A
Storage temperature:-20°C~60°C
Operational temperature: -10°C~40°C
Radio protocol:Z-Wave
Radio frequency: 868.42MHz
Range:More than 100m outdoors, About 30m
Indoors(depending on building materials)
Dimensions:55mm(L)*55mm(W)* 72mm(H)

Smart Plug is a Z-Wave Switch plug in module specifically used to
enable Z-Wave command and control (on/off) of any plug-in tool. It
can report wattage consumption or kWh energy usage.
This device is a security enabled Z-Wave Plus product that is able to
use encrypted Z-Wave Plus messages to communicate to other
security enabled Z-Wave Plus products.
Smart Plug is also a security Z-Wave device and supports the Over
The Air (OTA) feature for the product's firmware upgrade.
This device must be used in conjunction with a Security Enabled Z-
Wave Controller in order to fully utilize all implemented functions.
