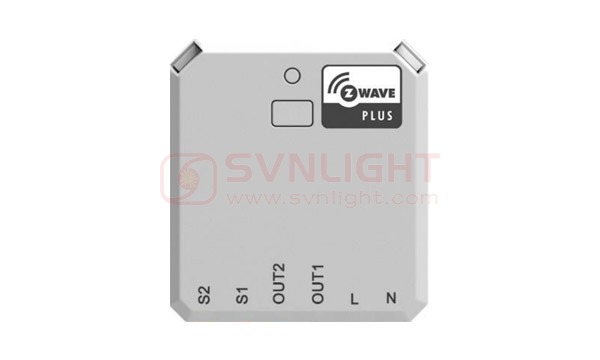

Nano Motor Controller Engineering

The Nano Motor Controller based on Z-waveTM Slave library of V7.16.03. This Micro Motor

Controller integrated Z-Wave communication module to connect with Z-Wave gateway.

The Motor Contoller can be included and operated in any Z-Wave network with other Z-Wave

certified devices from other manufacturers and/or other applications. All non-battery operated

nodes within the network will act as repeaters regardless of vendor to increase reliability of the

network.

The Motor Contoller is a security Z-Wave device (S2), so a security enabled controller is needed for

take full advantage of all functionally for the Motor Contoller.

Communication Protocol: Z-Wave

Radio Frequency: 908.42MHz(US Frequency)

                             921.42MHz(AU Frequency)

                             868.42MHz (EU Frequency)

                             865.2 MHz (IN Frequency)

Wireless Range: Up to 492 feet outdoors.

                           Up to 150 metres outdoors.

Input Voltage: 100~240VAC,50/60Hz

Power Output: Motor type: Single-phase AC asynchronous motor.

                        Max load rating: 100-240VAC, 50/60Hz, Max:5A.

Operating Temperature: 32-104° F (0-40° C)

Operating Humidity: 8% to 85% non-condensing

⚫ The Nano Motor Controller Support moving time calibration.

⚫ Manual or Z-Wave motor control with instant status updates.

⚫ Installs behind your existing wall Motor (single pole or 3-way).

⚫ 700 series Z-Wave chip for better range and faster control.

⚫ Scene control: trigger actions with multi-tap (select hubs only).

⚫ Remembers and restores on/off status aer power failure.

⚫ Built-in Z-Wave timer functionality and signal repeater.

⚫ SmartStart and S2 Security for a safer networ
