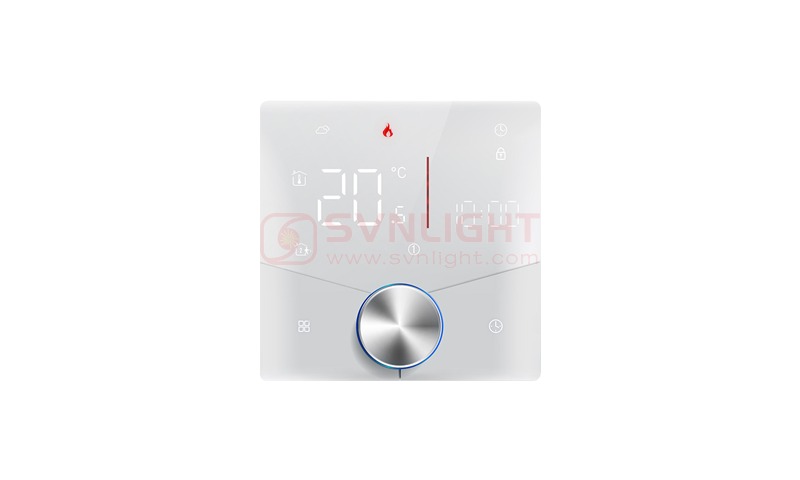

Room Thermostat for Underfloor Heating
Model: WFE21
Power Supply: 95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Set Temp. Range: 5 -35 ℃
Accuracy: ±1 ℃
Dispaly Temp. Range: 5 ~ 99℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45 ℃ Timing Error: < 1%
Power Consumption: <1.5W
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²
Protection Class: IP20
Buttons: Capactive Touch Buttons
For many years, we have been aiming to create excellent quality and high reliability Room Thermostat for Underfloor Heating,, and regard the needs of users as the basis of our research and development. The pursuit of excellence is our consistent corporate spirit, and always leading is our
