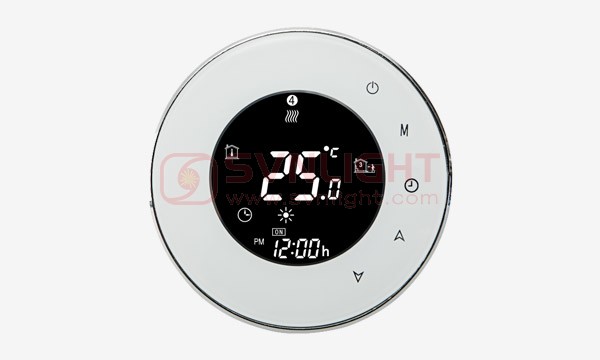

Weekly Programming Heating Thermostat

MODEL DEFINITION

GA:Water heating, 3A

GB: Electric floor Heating, 16A

GC: Water/Gas Boiler, 3A

L:Backlight

P: Weekly Programmable

N: Modbus Communicaton

B: BACnet Communication

W: Wifi

S2: Both internal sensor and floor external sensor

For example: WFE16 GCLP

Power Supply: 95～240 VAC, 50～60HZ

Current Load: 3A(water heating/water boiler/gas boiler16A(electric heating)

Sensor: NTC3950, 10K

Accuracy:±.5℃or±1F

Set Temp. Range: 5～35℃

Dispaly Temp. Range: 5～99℃

Ambient Temp. 0～45℃

Ambient Humidity: 5～95%RH (Non Condensing)

Storage Temp∴-5~45℃

Power Consumption: <1.5W

Timing Error: < 1%

Shell Material: PC +ABS( Fireproof)

Installation Box: 86*86mm Square or European 60mm Round Box

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x2.5 mm2

Protection Class: IP 20

Buttons: Capactive Touch Buttons
