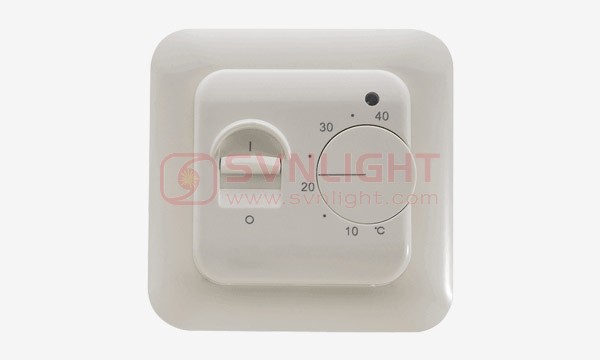

ELECTRONIC THERMOSTAT
ELECTRONIC THERMOSTAT
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃ (RTC70.33&RTC70.36)
Setback temperature: 5℃ (RTC70.33&RTC70.36)
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
Selection Table
Model Number | Current | Sensor | Temperature limitation function | Setback function | Loading(pcs/Carton) |
RTC70.13 | 3A | Built-in sensor | No | No | 64 |
RTC70.16 | 16A | Built-in sensor | No | No | 64 |
RTC70.26 | 16A | Floor sensor | No | No | 64 |
RTC70.33 | 3A | Build-in&floor sensor(optional) | Yes | Yes | 64 |
RTC70.36 | 16A | Build-in& floor sensor(recommend) | Yes |
