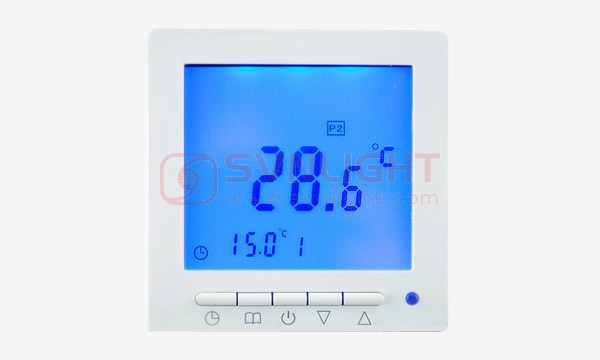

Weekly Programming Heating Thermostat

Heating Thermostat with weekly programming adopts the latest single-chip computer control technology.
It has the high reliability and powerful anti-jamming. It can realization energy-saving and comfortable living environment
The application is the electric heating equipment and Water heating system of electric heating or actuator control.
According to the preset temperature, the thermostat will automatically start and stop the controlled object (valve, floor
heating, the heating wall, electric heater etc).
Multiple time modes.5+2/6+ 1/7days, the heating equipment supports different temperature setting accordingly with 4
time-modes daily. Users are free to choose manual mode or full automatic mode for different purposes.
Using flame resistance material, the heating equipment is safe and reliable. Its appearance is stylish and easy to clean.
The clock would continue to run even if power was cut off and it will not affect the period setting value.
Keypad locking function is designed to prevent the children from misusing.

Power Supply: 85-250VAC 50/60 Hz (24V optional)
Maximum switch power: 3A/16A
Intemal sensor measurement range: 0 -40°C.
External sensor measurerment range: 0- 99℃.
Seting range: 5 - 35°C (factory settings: 25°C)
Seting range: 5- 95°C (factory setings: 50°C)
Inside sensor: NTC B=3380 10k @25degrees Celsius
Extra sensor: NTC B=3380 10k @25 degrees Celsius, length=3 meters (optinal)

Display resolution: 0.1°C

Setting Unit: 0.5 °C/step
