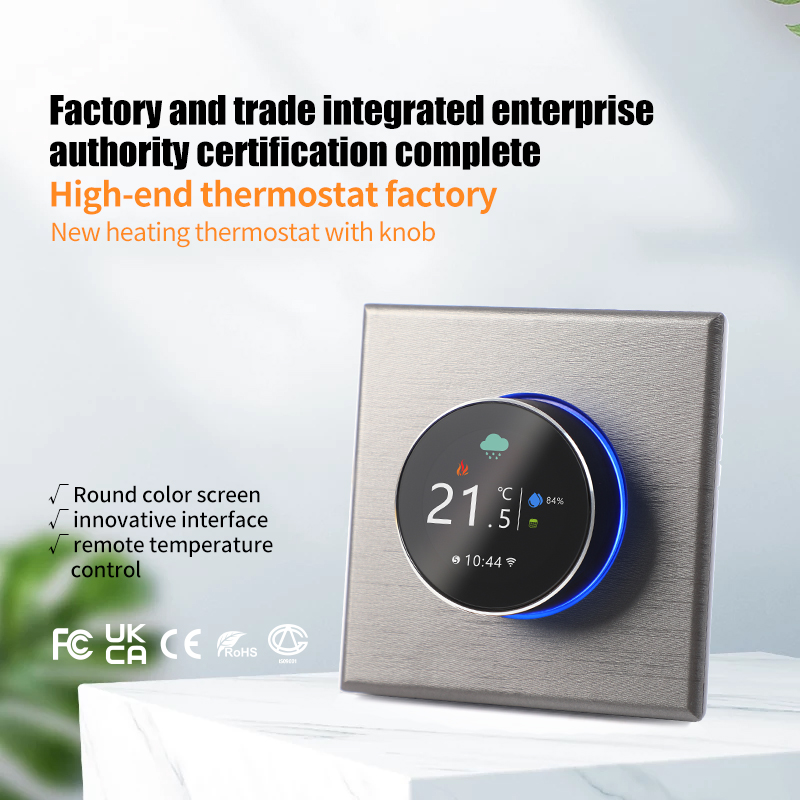

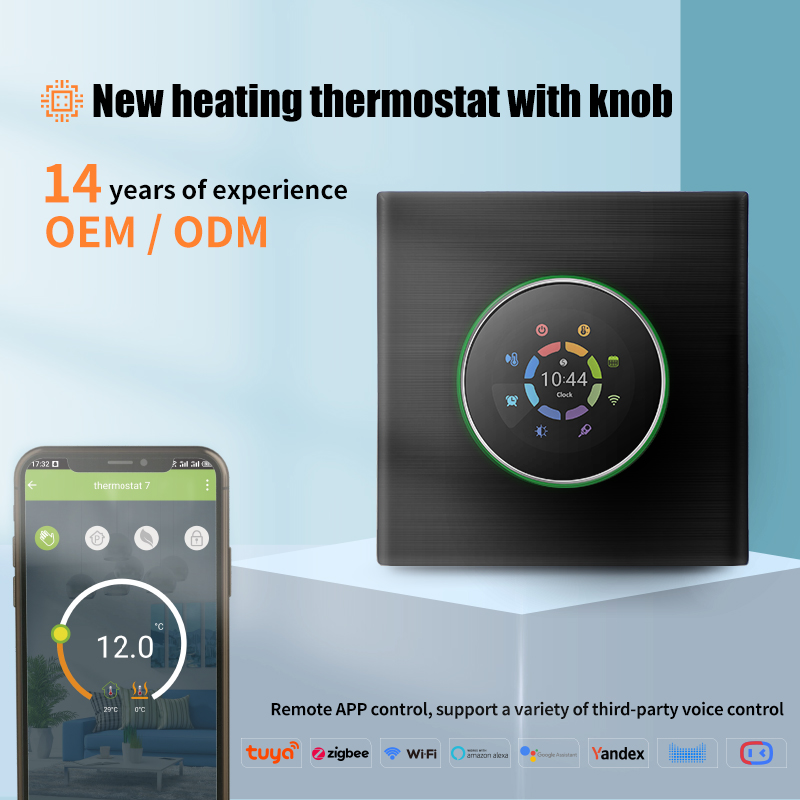

New heating thermostat with knob
Six characteristics on the design
Current Load: 5A (water heating, gas boiler), 16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±1°C
Set Temp. Range: 5-35°C
Room Temp. Range: 5-99°C
Display Temp. Range: 5 ~ 99°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: 0~ 45°C
Power Consumption: <1. 5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20

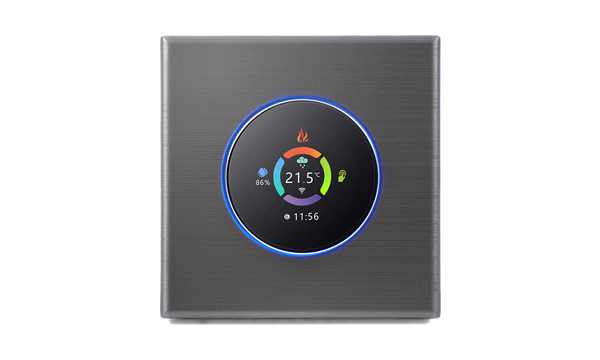

1.32 inch circular and 240*240 TFT shows your artistic taste.

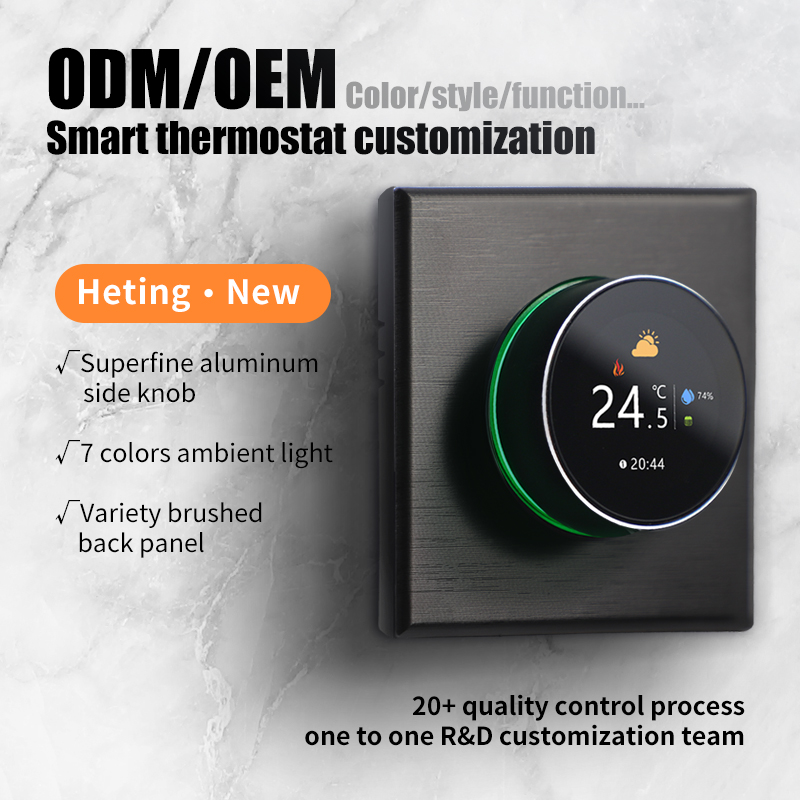

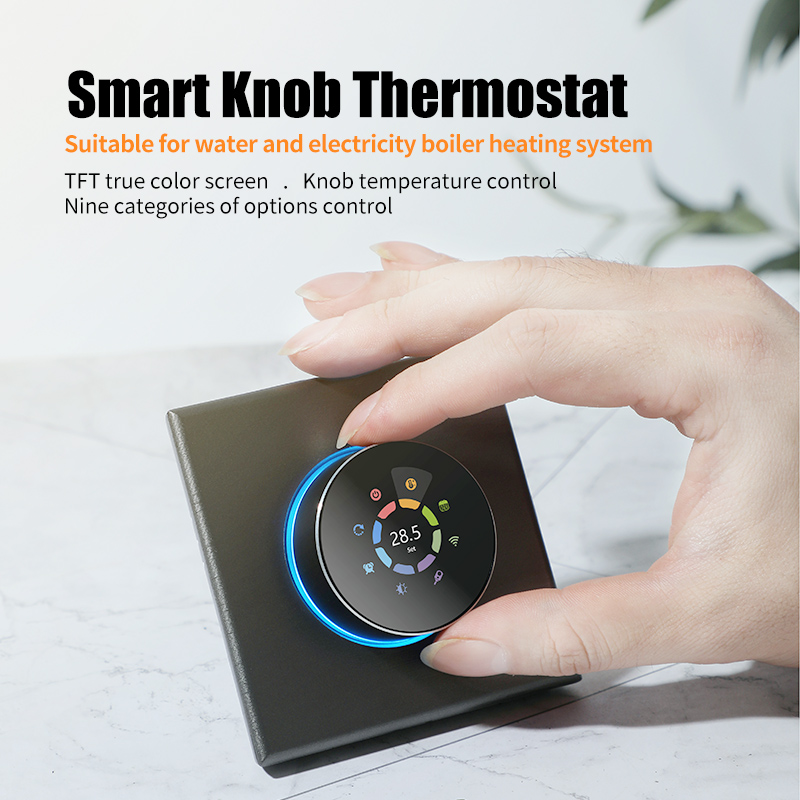

Superfine aluminum side knob lets your fingers feel delicate.
Above 6H tempered glass keeps your screen away from scratches.
Agile push button gives you an excellent experience.
Seven colors ambient light increase color to your life.
Variety brushed back panel options are suitable for different home styles.
