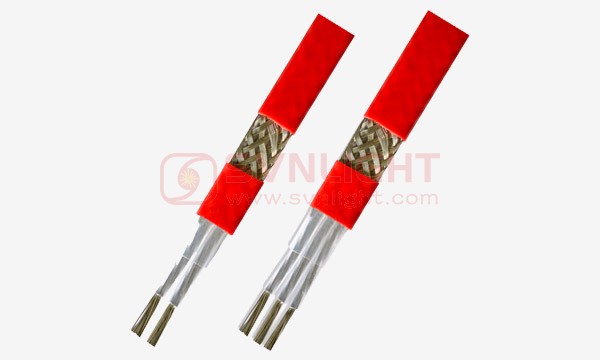

Resistance Heating Cables for longline systems

Model: SLC

INQUIRY（）

SEND EMAIL

ADD TO INQUIRY CART

DESCRIPTION
PARAMETERS
APPLICATION

Electrical freeze protection for long pipelines in both nonhazardous and hazardous locations.
SLC series-resistance technology provides freeze protection and high temperature maintenance for long line applications.

This series-resistance type heating cable can withstand continuous exposure temperatures up to 400℉ (204℃), and is suitable for use in hazardous locations and in areas exposed to corrosives.

SLC heating cables can be used for continuous circuit lengths to 12,000 feet (3659m), powered from a single source.

For additional information, contact your representative.

With our strong economic strength, senior R&D strength, scientific management system and forward-looking marketing strategy, we are determined to become a leading supplier of Resistance Heating Cables for longline systems,heating cable,resistance cable,industry cable,Resistance Heating Cables for longline system and bring more efficient services and better products to our customers. We

Catalog Number	Maximum circuit breaker size A	Bus wire size AWG	Cable resistance @ 68℉ (20℃) Ω/Km
2SLC18	40	18	38.69
2SLC16	40	16	30.04
2SLC14	40	14	19.02
2SLC12	60	12	12.26
2SLC10	80	10	7.87
2SLC8	100	8	4.26

Catalog Number	Maximum circuit breaker size A	Bus wire size AWG	Cable resistance @ 68℉ (20℃) Ω/Km
3SLC18	40	18	19.35
3SLC16	40	16	15.02
3SLC14	40	14	9.51
3SLC12	60	12	6.13
3SLC10	80	10	3.94
3SLC8	100	8	2.13

Area classification	Hazardous area, Ordinary
Chemical resistance	Organic and inorganic corrosives
Supply Voltage	Maximum 600Vac，
Max. continuous exposure (Power off)	CT for 204℃；CR for 90℃
Linear Output	CT for 40W/m；CR for 25W/m
Min. installation temperature	-40℃
Min. bending radius	25mm
