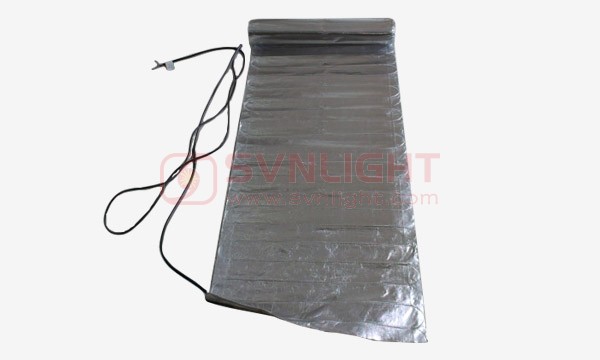

The SLA-mat floor warming system includes a fluoropolymer insulated heating cable woven into a specially reinforced aluminium foil that allows for simple roll-out installation without worrying about heating cable spacing.
SLA-mat Floor warming mat Systems combine the highest comfort levels with maximum energy efficiency. It's a proven technology that's safe,reliable and energy efficient.
· for laminate floor and under-carpet heating
· Single point connection
· Twin conductor cable
· Emits zero EMF (electromagnetic fields)
· Flexible installation
· Durable construction
· 15-year limited warranty against manSLActuring defects
<-------- Can Move Left or Right -------->
Cable Construction: | Twin conductor |
Rated Voltage: | 230V |
Output: | 80W/m2 &140W/m2 &150W/m2 |
Cable spacing: | 50mm |
Cable Diameter: | 1.0mm |
Conductor Insulation: | fluoropolymer |
Max. Ambient Temp.: | 85℉(30℃) |
Min. Installation Temp.: | 40℉(5℃) |
Cold lead | 2-wire plus ground, 2.5m length |
<-------- Can Move Left or Right -------->
230V | Heated Area | Mat Dimensions | Watts (80W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
|
|
|
SLA-mat/80-80-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.5 | 80 | 0.3 | 661.3 |
SLA-mat/80-120-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 120 | 0.5 | 440.8 |
SLA-mat/80-160-2.0 | 2.0 | 21.5 | 0.5*4 | 20*12.9 | 160 | 0.7 | 330.6 |
SLA-mat/80-200-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 200 | 0.9 | 264.5 |
SLA-mat/80-240-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.4 | 240 | 1.0 | 220.4 |
SLA-mat/80-280-3.5 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 280 | 1.2 | 188.9 |
SLA-mat/80-320-4.0 | 4.0 | 43.1 | 0.5*8 | 20*25.8 | 320 | 1.4 | 165.3 |
SLA-mat/80-360-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 360 | 1.6 | 146.9 |
SLA-mat/80-400-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.3 | 400 | 1.7 | 132.3 |
SLA-mat/80-480-6.0 | 6.0 | 64.6 | 0.5*12 | 20*38.8 | 480 | 2.1 | 110.2 |
SLA-mat/80-560-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.2 | 560 | 2.4 | 94.5 |
SLA-mat/80-640-8.0 | 8.0 | 86.1 | 0.5*16 | 20*51.7 | 640 | 2.8 | 82.7 |
SLA-mat/80-720-9.0 | 9.0 | 96.9 | 0.5*18 | 20*58.1 | 720 | 3.1 | 73.5 |
SLA-mat/80-800-10 | 10 | 107.6 | 0.5*20 | 20*64.6 | 800 | 3.5 | 66.1 |
SLA-mat/80-960-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 960 | 4.2 | 55.1 |
<-------- Can Move Left or Right -------->
230V | Heated Area | Mat Dimensions | Watts (140W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
|
|
|
SLA-mat/140-140-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.5 | 140 | 0.6 | 377.9 |
SLA-mat/140-210-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 210 | 0.9 | 251.9 |
SLA-mat/140-280-2.0 | 2.0 | 21.5 | 0.5*4 | 20*12.9 | 280 | 1.2 | 188.9 |
SLA-mat/140-350-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 350 | 1.5 | 151.1 |
SLA-mat/140-420-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.4 | 420 | 1.8 | 126.0 |
SLA-mat/140-490-3.5 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 490 | 2.1 | 108.0 |
SLA-mat/140-560-4.0 | 4.0 | 43.1 | 0.5*8 | 20*25.8 | 560 | 2.4 | 94.5 |
SLA-mat/140-630-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 630 | 2.7 | 84.0 |
SLA-mat/140-700-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.3 | 700 | 3.0 | 75.6 |
SLA-mat/140-840-6.0 | 6.0 | 64.6 | 0.5*12 | 20*38.8 | 840 | 3.7 | 63.0 |
SLA-mat/140-980-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.2 | 980 | 4.3 | 54.0 |
SLA-mat/140-1120-8.0 | 8.0 | 86.1 | 0.5*16 | 20*51.7 | 1120 | 4.9 | 47.2 |
SLA-mat/140-1260-9.0 | 9.0 | 96.9 | 0.5*18 | 20*58.1 | 1260 | 5.5 | 42.0 |
SLA-mat/140-1400-10 | 10 | 107.6 | 0.5*20 | 20*64.6 | 1400 | 6.1 | 37.8 |
SLA-mat/140-1680-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1680 | 7.3 | 31.5 |
230V | Heated Area | Mat Dimensions | Watts (150W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
|
|
|
SLA-mat/150-150-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.5 | 150 | 0.7 | 352.7 |
SLA-mat/150-225-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 225 | 1.0 | 235.1 |
SLA-mat/150-300-2.0 | 2.0 | 21.5 | 0.5*4 | 20*12.9 | 300 | 1.3 | 176.3 |
SLA-mat/150-375-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 375 | 1.6 | 141.1 |
SLA-mat/150-450-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.4 | 450 | 2.0 | 117.6 |
SLA-mat/150-525-3.5 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 525 | 2.3 | 100.8 |
SLA-mat/150-600-4.0 | 4.0 | 43.1 | 0.5*8 | 20*25.8 | 600 | 2.6 | 88.2 |
SLA-mat/150-675-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 675 | 2.9 | 78.4 |
SLA-mat/150-750-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.3 | 750 | 3.3 | 70.5 |
SLA-mat/150-900-6.0 | 6.0 | 64.6 | 0.5*12 | 20*38.8 | 900 | 3.9 | 58.8 |
SLA-mat/150-1050-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.2 | 1050 | 4.6 | 50.4 |
SLA-mat/150-1200-8.0 | 8.0 | 86.1 | 0.5*16 | 20*51.7 | 1200 | 5.2 | 44.1 |
SLA-mat/150-1350-9.0 | 9.0 | 96.9 | 0.5*18 | 20*58.1 | 1350 | 5.9 | 39.2 |
SLA-mat/150-1500-10 | 10 | 107.6 | 0.5*20 | 20*64.6 | 1500 | 6.5 | 35.3 |
SLA-mat/150-1800-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1800 | 7.8 | 29.4 |
