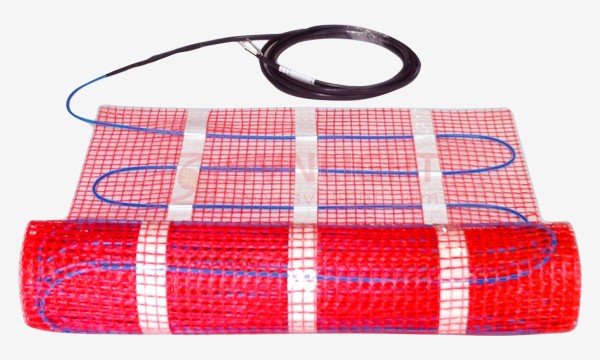

The SLT-mat floor warming systerm includes a blue heating cable woven into an adhesive-backed red fiberglass mesh that allows for simple roll-out installation without worrying about heating cable spacing.
SLT-mat Floor warming mat Systems combine the highest comfort levels with maximum energy efficiency. It's a proven technology that's safe,
reliable and energy efficient.
·Single point connection
·Twin conductor cable
·Emits zero EMF (electromagnetic fields)
·Safety approved for wet locations
<-------- Can Move Left or Right -------->
Cable Construction: | Twin conductor |
Rated Voltage: | 230V |
Output: | 100W/m2 &150W/m2 &200W/m2 |
Cable spacing: | 93mm(100W/m2) & 80mm(150W/m2) & 80mm(200W/m2) |
Cable Diameter: | 3.6-4.0mm |
Conductor Insulation: | fluoropolymer |
Outer Jacket: | PVC |
Max. Ambient Temp.: | 85℉(30℃) |
Min. Installation Temp.: | 40℉(5℃) |
Cold lead | 2-wire plus ground braid; 2.5m length |
<-------- Can Move Left or Right -------->
230V | Heated Area | Mat Dimensions | Watts (100W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
|
|
|
SLT-mat/100-100-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.6 | 100 | 0.4 | 529.0 |
SLT-mat/100-150-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.9 | 150 | 0.7 | 352.7 |
SLT-mat/100-200-2.0 | 2.0 | 21.5 | 0.5*4 | 20*13.1 | 200 | 0.9 | 264.5 |
SLT-mat/100-250-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.4 | 250 | 1.1 | 211.6 |
SLT-mat/100-300-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.7 | 300 | 1.3 | 176.3 |
SLT-mat/100-350-3.5 | 3.5 | 37.7 | 0.5*7 | 20*23.0 | 350 | 1.5 | 151.1 |
SLT-mat/100-400-4.0 | 4.0 | 43.1 | 0.5*8 | 20*26.3 | 400 | 1.7 | 132.3 |
SLT-mat/100-450-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.5 | 450 | 2.0 | 117.6 |
SLT-mat/100-500-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.8 | 500 | 2.2 | 105.8 |
SLT-mat/100-600-6.0 | 6.0 | 64.6 | 0.5*12 | 20*39.4 | 600 | 2.6 | 88.2 |
SLT-mat/100-700-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.9 | 700 | 3.0 | 75.6 |
SLT-mat/100-800-8.0 | 8.0 | 86.1 | 0.5*16 | 20*52.5 | 800 | 3.5 | 66.1 |
SLT-mat/100-900-9.0 | 9.0 | 96.9 | 0.5*18 | 20*59.1 | 900 | 3.9 | 58.8 |
SLT-mat/100-1000-10 | 10 | 107.6 | 0.5*20 | 20*66.6 | 1000 | 4.3 | 52.9 |
SLT-mat/100-1200-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1200 | 5.2 | 44.1 |
<-------- Can Move Left or Right -------->
230V | Heated Area | Mat Dimensions | Watts (150W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
|
|
|
SLT-mat/150-150-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.6 | 150 | 0.7 | 352.7 |
SLT-mat/150-225-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.9 | 225 | 1.0 | 235.1 |
SLT-mat/150-300-2.0 | 2.0 | 21.5 | 0.5*4 | 20*13.1 | 300 | 1.3 | 176.3 |
SLT-mat/150-375-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.4 | 375 | 1.6 | 141.1 |
SLT-mat/150-450-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.7 | 450 | 2.0 | 117.6 |
SLT-mat/150-525-3.5 | 3.5 | 37.7 | 0.5*7 | 20*23.0 | 525 | 2.3 | 100.8 |
SLT-mat/150-600-4.0 | 4.0 | 43.1 | 0.5*8 | 20*26.3 | 600 | 2.6 | 88.2 |
SLT-mat/150-675-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.5 | 675 | 2.9 | 78.4 |
SLT-mat/150-750-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.8 | 750 | 3.3 | 70.5 |
SLT-mat/150-900-6.0 | 6.0 | 64.6 | 0.5*12 | 20*39.4 | 900 | 3.9 | 58.8 |
SLT-mat/150-1050-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.9 | 1050 | 4.6 | 50.4 |
SLT-mat/150-1200-8.0 | 8.0 | 86.1 | 0.5*16 | 20*52.5 | 1200 | 5.2 | 44.1 |
SLT-mat/150-1350-9.0 | 9.0 | 96.9 | 0.5*18 | 20*59.1 | 1350 | 5.9 | 39.2 |
SLT-mat/150-1500-10 | 10 | 107.6 | 0.5*20 | 20*66.6 | 1500 | 6.5 | 35.3 |
SLT-mat/150-1800-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 1800 | 7.8 | 29.4 |
230V | Heated Area | Mat Dimensions | Watts (200W/m2) | Amps | ohms |
Catalog Number | m2 | sq.ft. | m*m | in.*ft. |
SLT-mat/200-200-1.0 | 1.0 | 10.8 | 0.5*2 | 20*6.6 | 200 | 0.9 | 264.5 |
SLT-mat/200-300-1.5 | 1.5 | 16.1 | 0.5*3 | 20*9.9 | 300 | 1.3 | 176.3 |
SLT-mat/200-400-2.0 | 2.0 | 21.5 | 0.5*4 | 20*13.1 | 400 | 1.7 | 132.3 |
SLT-mat/200-500-2.5 | 2.5 | 26.9 | 0.5*5 | 20*16.4 | 500 | 2.2 | 105.8 |
SLT-mat/200-600-3.0 | 3.0 | 32.3 | 0.5*6 | 20*19.7 | 600 | 2.6 | 88.2 |
SLT-mat/200-700-3.5 | 3.5 | 37.7 | 0.5*7 | 20*23.0 | 700 | 3.0 | 75.6 |
SLT-mat/200-800-4.0 | 4.0 | 43.1 | 0.5*8 | 20*26.3 | 800 | 3.5 | 66.1 |
SLT-mat/200-900-4.5 | 4.5 | 48.4 | 0.5*9 | 20*29.5 | 900 | 3.9 | 58.8 |
SLT-mat/200-1000-5.0 | 5.0 | 53.8 | 0.5*10 | 20*32.8 | 1000 | 4.3 | 52.9 |
SLT-mat/200-1200-6.0 | 6.0 | 64.6 | 0.5*12 | 20*39.4 | 1200 | 5.2 | 44.1 |
SLT-mat/200-1400-7.0 | 7.0 | 75.3 | 0.5*14 | 20*45.9 | 1400 | 6.1 | 37.8 |
SLT-mat/200-1600-8.0 | 8.0 | 86.1 | 0.5*16 | 20*52.5 | 1600 | 7.0 | 33.1 |
SLT-mat/200-1800-9.0 | 9.0 | 96.9 | 0.5*18 | 20*59.1 | 1800 | 7.8 | 29.4 |
SLT-mat/200-2000-10 | 10 | 107.6 | 0.5*20 | 20*66.6 | 2000 | 8.7 | 26.5 |
SLT-mat/200-2400-12 | 12 | 129.2 | 0.5*24 | 20*78.8 | 2400 | 10.4 | 22.0 |
