Constant Wattage Heating Cables

SLP is a constant wattage parallel circuit heating cable designed for pipe and equipment heat-tracing in industrial applications. This family offers an economical alternative to our self-regulating heating cables but requires more skill for installation and also requires more advanced control and monitoring systems.

The heating cables are zone parallel heaters constructed from a heating element wrapped around two parallel conductors. The distance between conductor contact points forms the heating zone length. The parallel construction allows it to be cut-to-length and terminated in the field. SLP heating cables can withstand routine steam purges and temperature exposure to 205℃ power off.

Features

·Uniform Thermal Output

· Accurate, Easy to Control and Monitor

·Low Energy Cost

·No Inrush at Any Ambient

·Industrial/Process and  Commercial/Construction Applications

·Flexible to Most Any Configuration

·Fluoropolymer Jacket

·Maximum Exposure Temperature, Power Off, 400℉(205℃)

·10,20,30 and 40 W/m

·220V

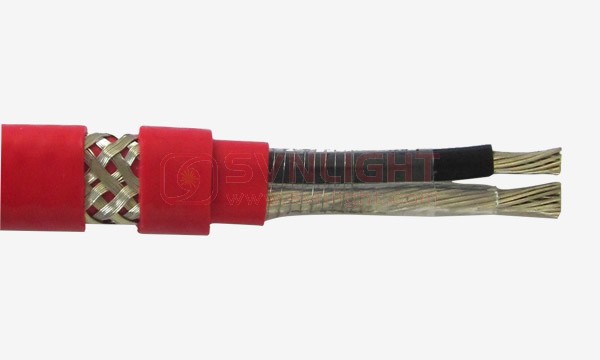

Construction

A Twin 12 AWG Copper Buss Wires — Provide reliable, consistent electrical current.

B FEP Insulation Jacket — Electrically insulates buss wires.

C Pairing Jacket — Secures two buss wires together and provides wrapping surface for Nichrome wire.

D Nickel Chromium Wire — Heating component of the cable.

E FEP Insulation — Rugged outer sheath protects heating cable, assures longer service life, and provides protection against environmental application hazards.

F Tinned Copper Braid — Plated copper braid increases robust construction, provides ground path and provides additional protection in any location.

G FEP Overjacket — Fluoropolymer overjacket, over the braid, provides protection from most aqueous and chemically corrosive solutions.

Performance and Rating Data:

The above numbers are for circuit length estimation only. For more detailed information please contact your local representative.

The company requires the use of a 30 mA residual current device to provide maximum safety and protection from fire.

Where design results in a higher leakage current, a maximum 300 mA residual current device may be used. All safety aspects

Components：

We offers a full range of components for power connections, splices and end seals.

These components must be used to ensure proper functioning of the product and compliance with electrical requirements.
